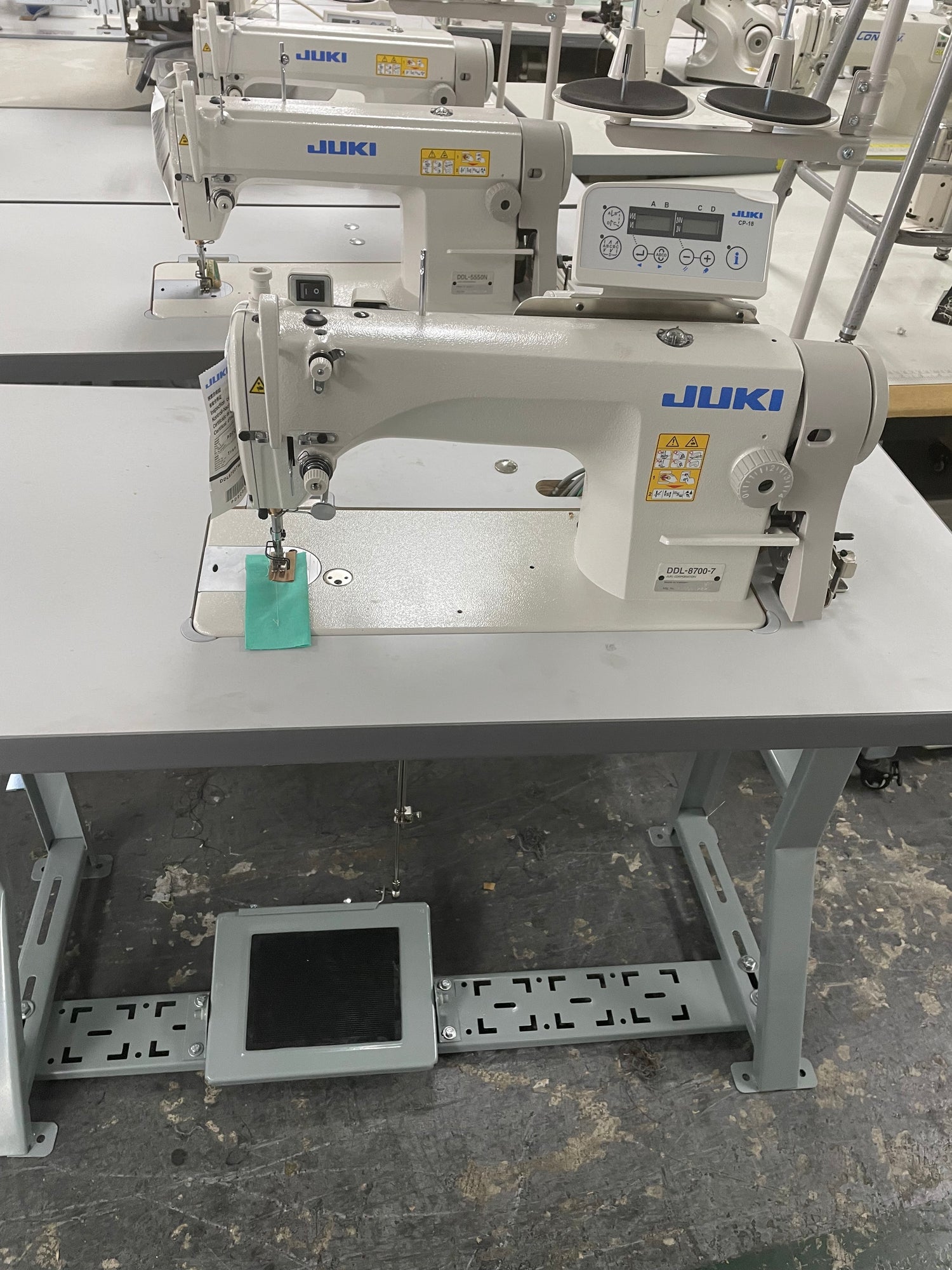

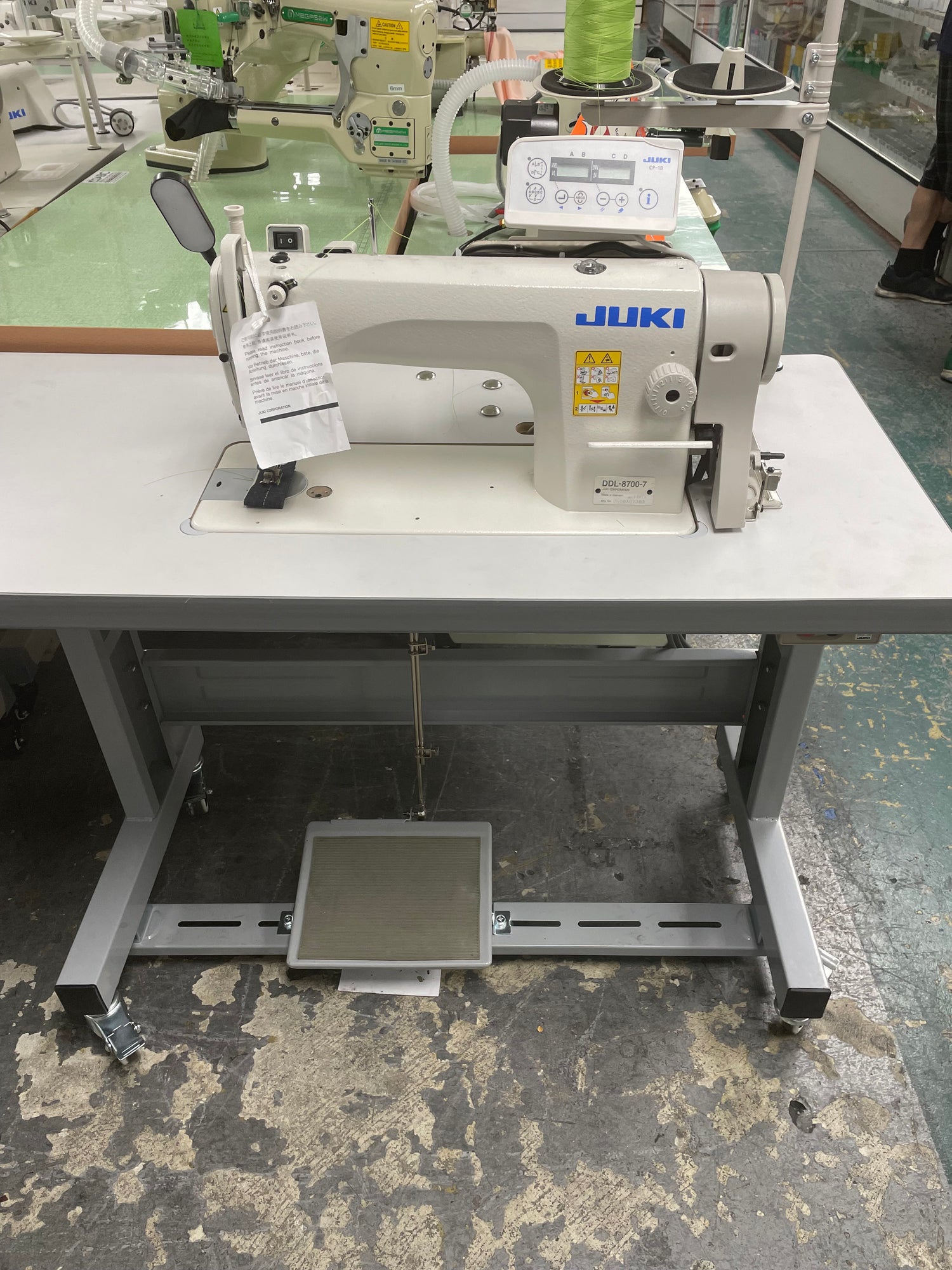

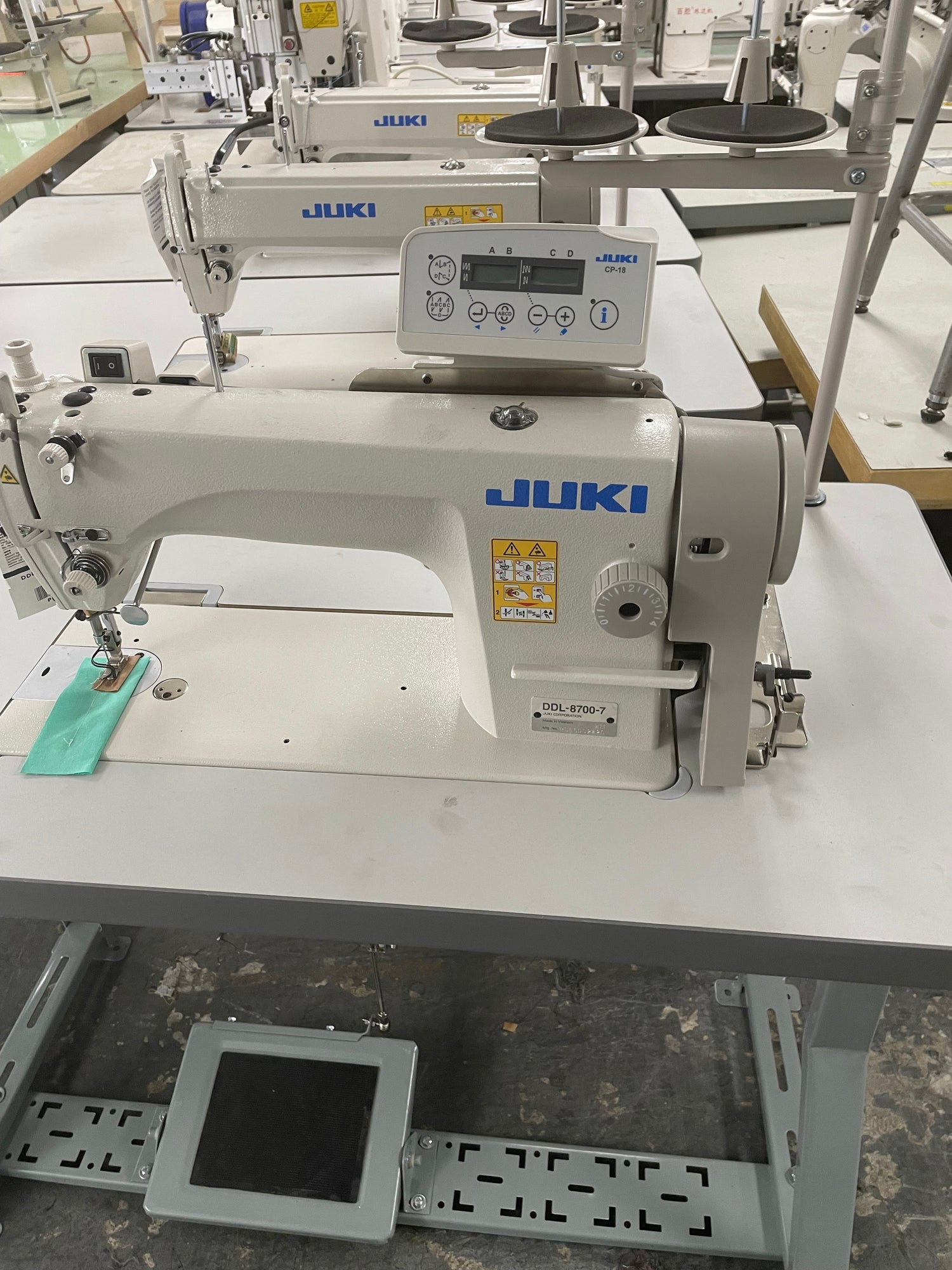

THE JUKI DDL-8700-7

Regular price
$1,950.00 USD
Regular price
Sale price
$1,950.00 USD
Style
  • The JUKI DDL-8700-7
  1. Single Needle Drop Feed Automatic Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp.
  2. MACHINE SPECIFICATIONS:
  3. Application: Medium-Weight
  4. Max. Sewing Speed: 5000 Stitches per Minute
  5. Max. Stitch Length: 4mm
  6. Needle Bar Stroke: 30.7mm
  7. Lift of Presser Foot by Hand: 5.5 mm
  8. Lift of Presser Foot by Knee: 13 mm
  9. Unit dimensions: (LxWxH): 48 inches by 20 inches by 48 inches
  10. Needle: DB X 1, sizes 9-18 110V with Juki M92 servo motor, SC920 control box, and CP-18 panel
  11. Feed Dog: 4-row
  12. Hook: Automatic-lubricating full-rotary hook
  13. Lubrication: Automatic
  14. Lubricating Oil: JUKI MACHINE OIL 7 (equivalent to ISO VG7)
  15. Automatic Reverse Feed Function: Provided as standard
  16. Control Box:SC-920C: Compact-size servomotor M92 (450W)
  17. Machine Motor: Single-phase 100~240V, 3-phase 200~240V
  18. Power Requirement: Single-phase 100~240V, 3-phase 200~240V
  19. Power Consumption: 320VA
  20. Total Weight: Machine head: 77.162 Libras.
